BE11000 Wall Plate Wi-Fi 7 Access Point
- 6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 4324 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.
- Flexible and Aesthetic Integration: Versatile mounting design with a paintable cover included for flexible integration.
- Multiple Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out)
- Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.△
- Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections** and covers up to 1050 ft² (100 m²) * for reliable and extensive wireless connectivity.
Learn more about Omada Cloud SDN>
| HARDWARE FEATURES | |
|---|---|
| Interface | • Uplink: 1× 2.5G Ethernet Port• Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3at/bt PoE |
| PoE Out | Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input. |
| Max. Power Consumption | 45W (with 25W PoE Out) |
| Dimensions ( W x D x H ) | 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm) |
| Antenna | 6× Internal Antennas• 2.4 GHz: 2× 5 dBi• 5 GHz: 2× 5.5 dBi• 6 GHz: 2× 5.5 dBi |
| Bluetooth | V5.2 |
| Mounting | Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 1050 ft² (100 m²)* |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Signal Rate | • 6 GHz: Up to 5765 Mbps• 5 GHz: Up to 4324 Mbps• 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | • MLO‡• 4K-QAM‡• Multi-RUs‡• 320 MHz Bandwidth‡• 24 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming△• Beamforming• Rate Limit (Based on SSID/Client)• Load Balance• Airtime Fairness• Band Steering• Reboot Schedule• Wireless Schedule• RADIUS Accounting• MAC Authentication• Wireless Statistics• Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | 4-22 dBm (2.4 GHz)4-22 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3)4-22 dBm (6 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller• Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of an Omad Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |

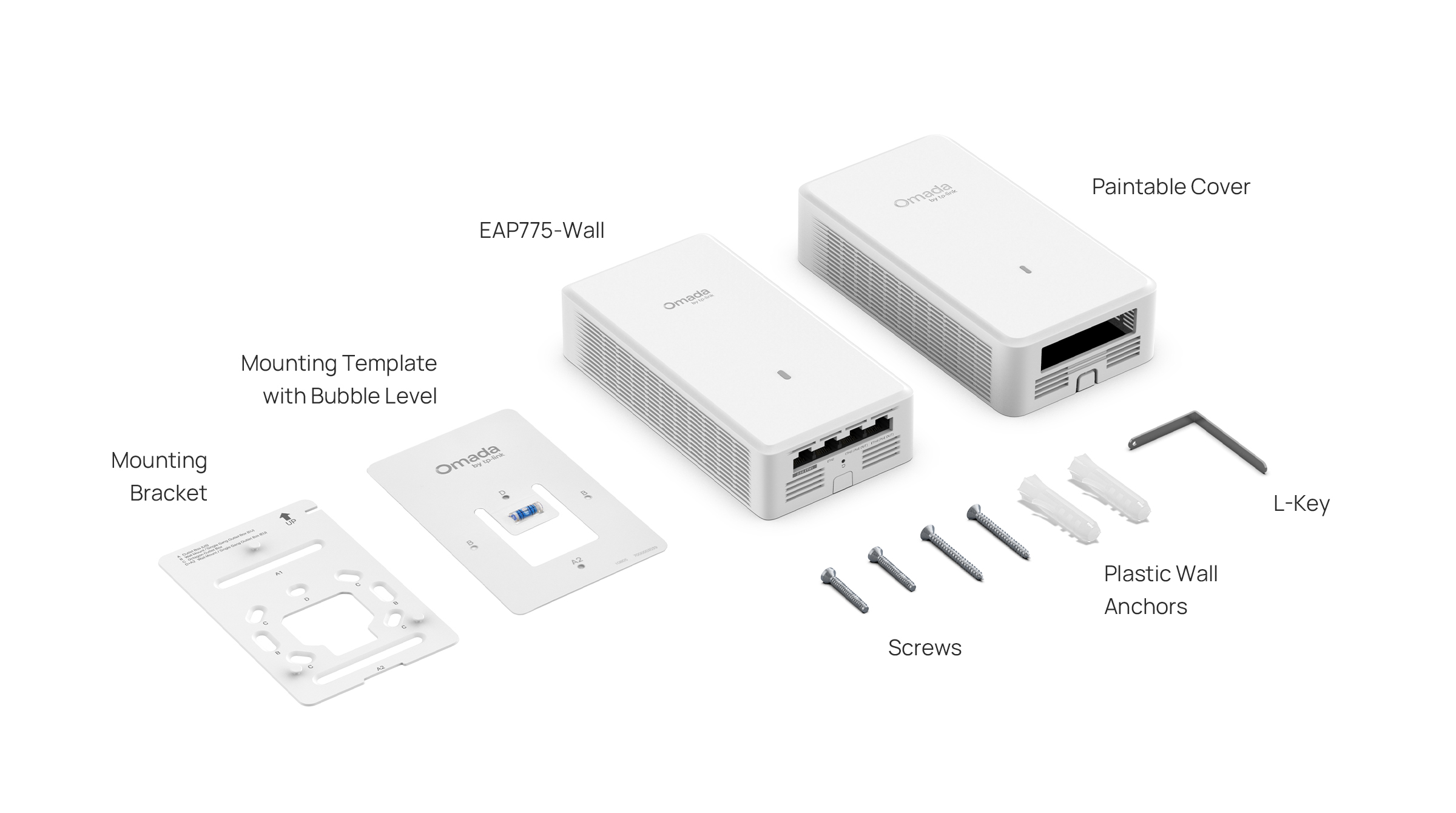

| Package Content | • EAP775-Wall• Installation Guide• Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be) and features including 360 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada mesh, seamless roaming, captive portal, and cloud access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
